Quangsheng Marking Gauge

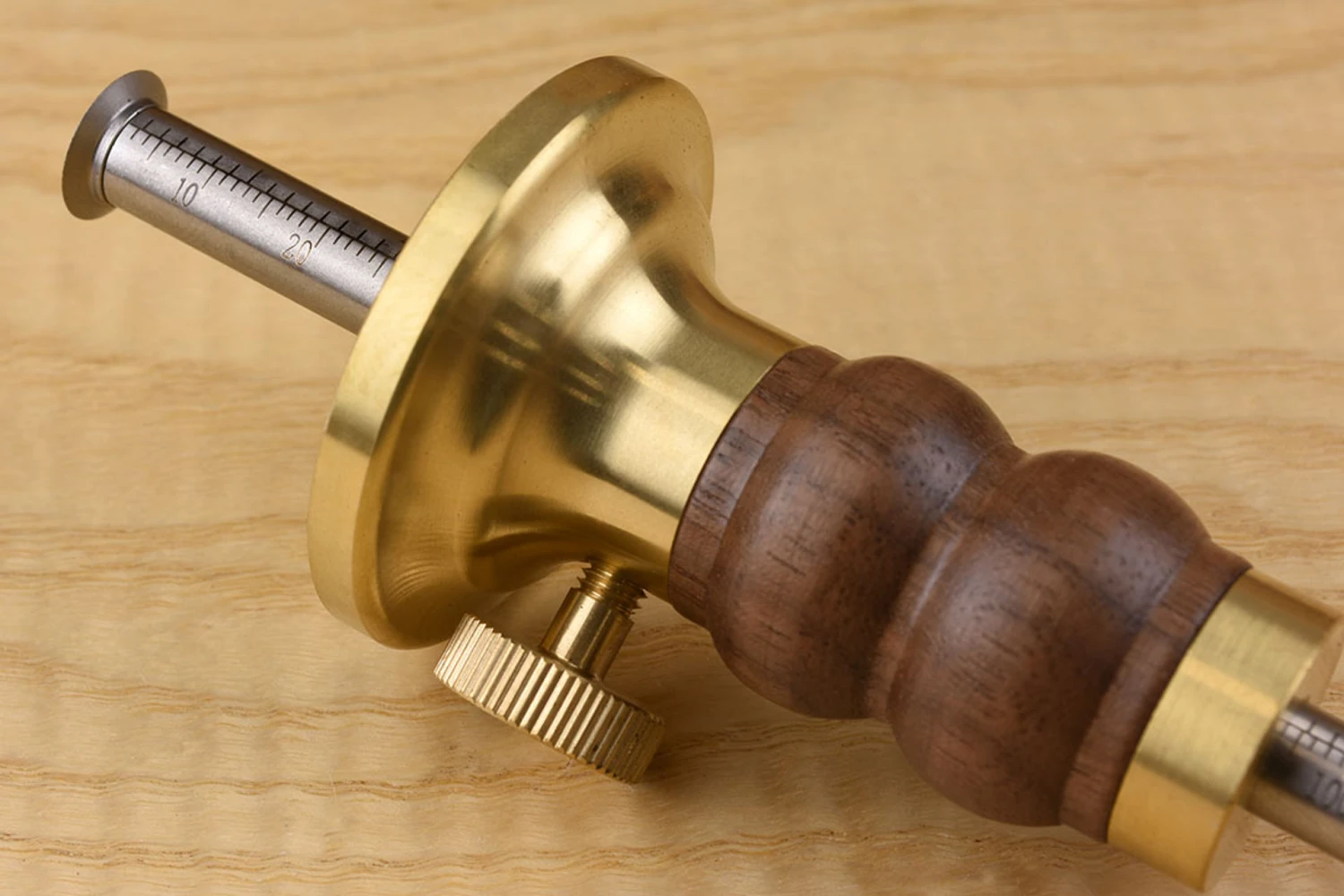

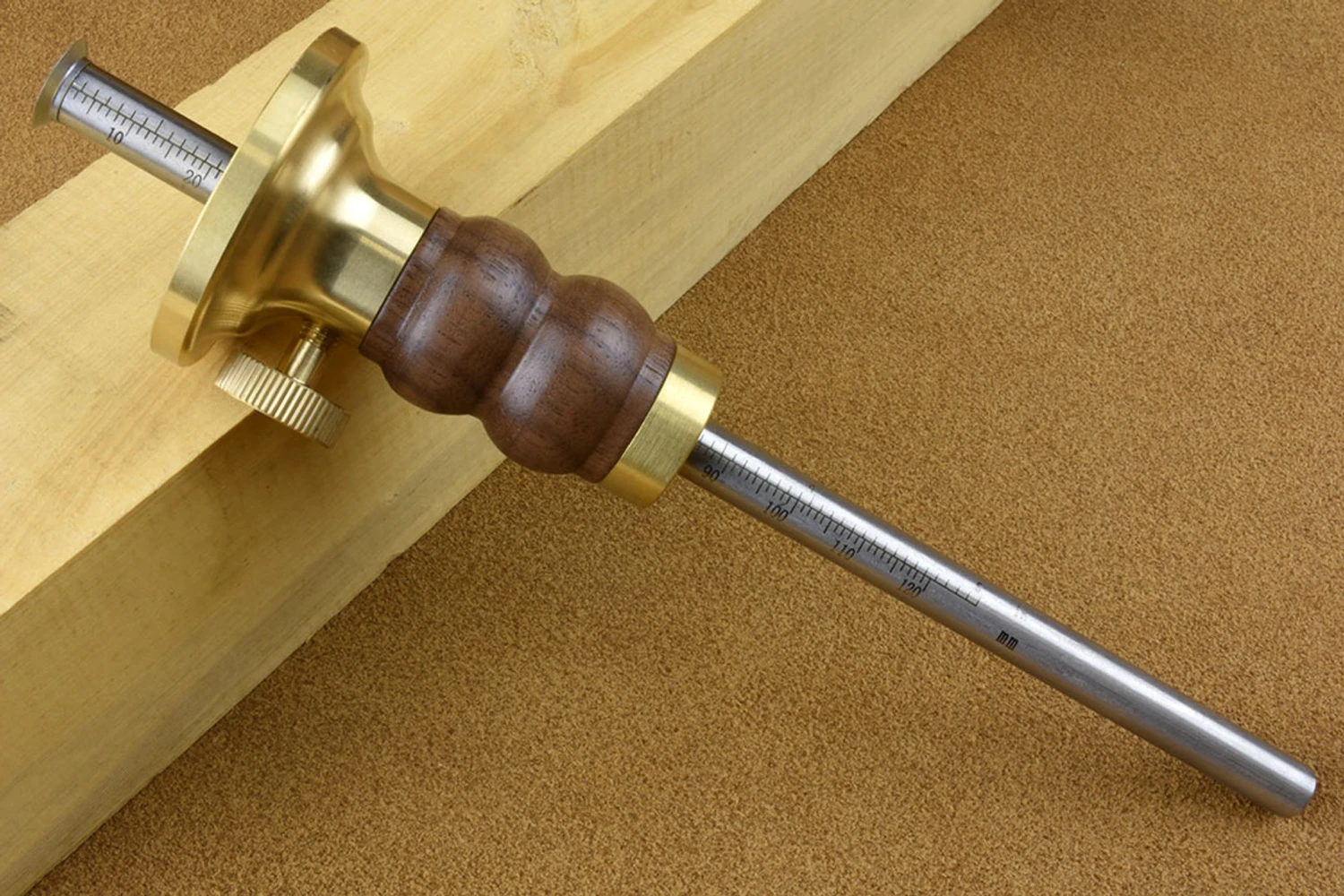

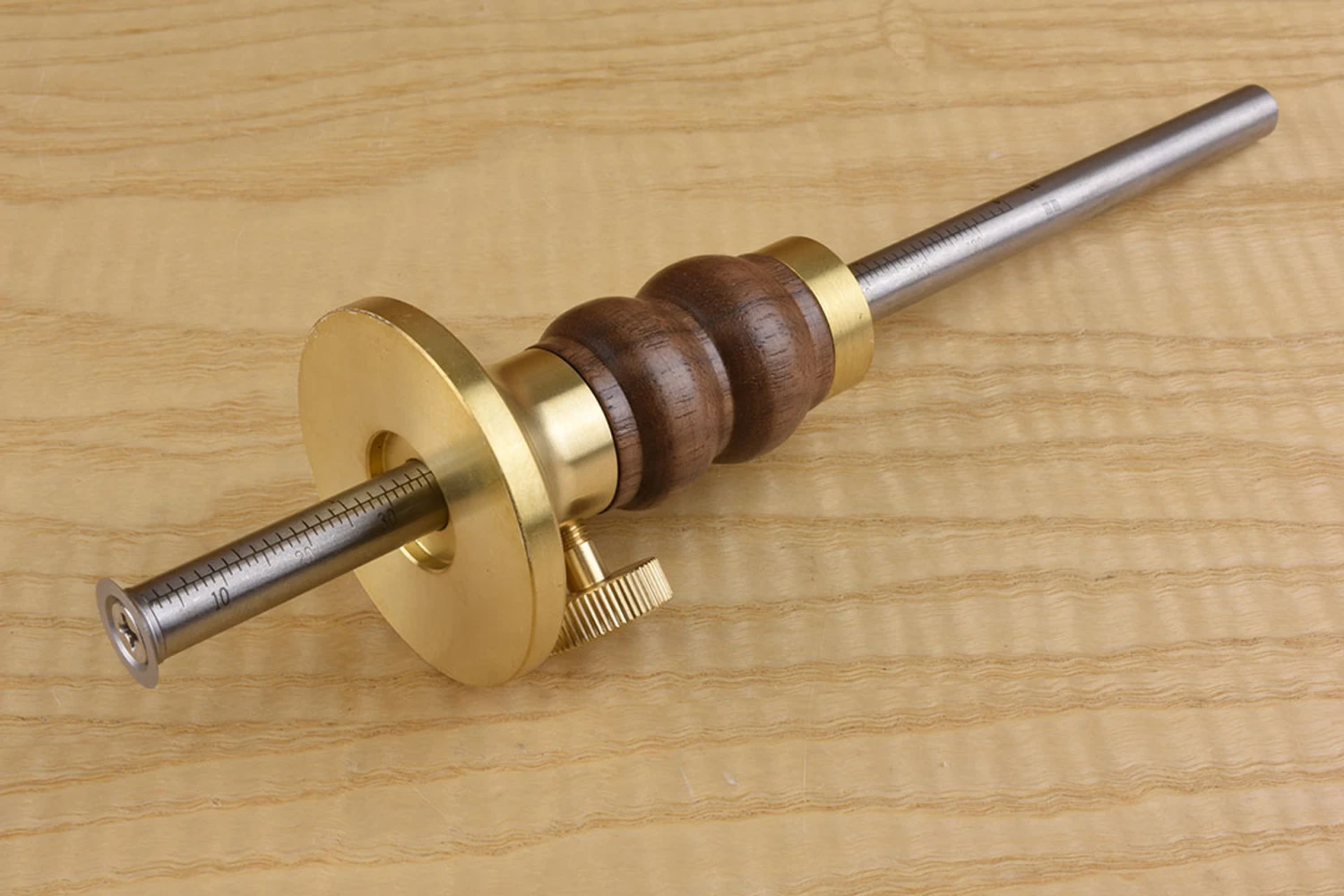

Turned from solid brass with a hardwood infill, this achingly beautiful and superbly accurate marking gauge from Quangsheng is around twice the weight of comparable tools.The stainless steel bar with accurate etched graduations makes what engineers would describe as a ‘close sliding fit’ within the body of the gauge.The fence is recessed, allowing the cutter to be withdrawn safely inside the head and it also has a very discrete micro adjustment mechanism. Loosen the collar on the end furthest from the fence by rotating it clockwise (left hand thread) and hold it in place with your thumb. The head can then be rotated, 1 turn = ¹⁄₁₆”, to align the fence with the graduations. Lock the head in place and spin the collar up out of the way.The 12mm circular blade is designed not to rotate as the tool is drawn through the cut, the amount of play required for the wheel to turn would diminish the accuracy of the mark by a similar amount.Overall Length: 182mmWalnut collarPlease note that we are unable to ship Quangsheng products to North America due to retail exclusivity restrictions.

SKU:

220303

UPC:
