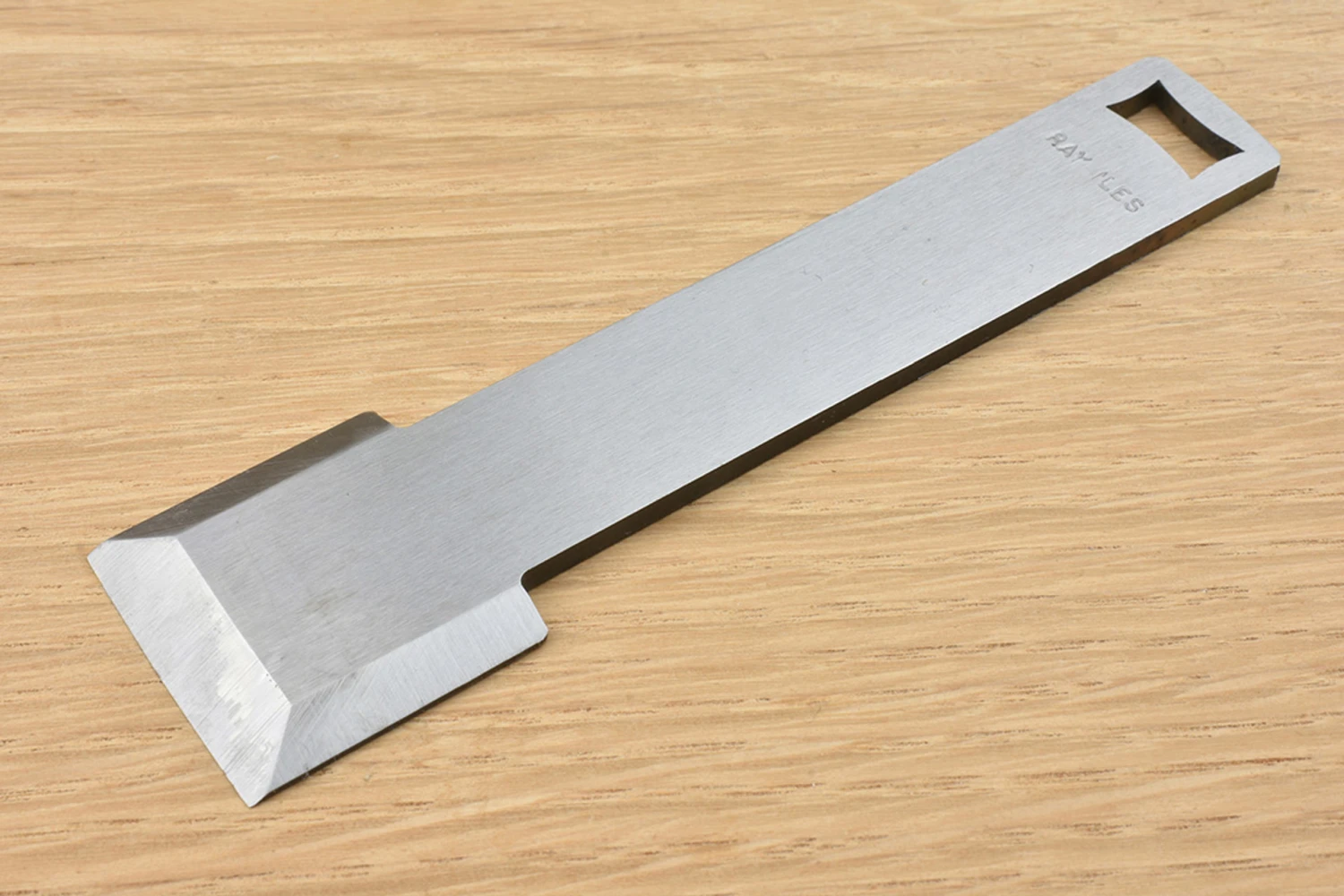

Ray Iles Plane Iron RI007 (Record 077, 311)

Ray Iles RI007 1⅛” (29mm) bull-nose rabbet plane iron fits Record 077, 077A, 311 and Preston equivalents.O1 carbon steel hardened to RC59-61Overall Length: 110mm (4.33″ approx)Blade length: 28mm (1.10″ approx)Blade width: 29mm (1.14″ approx)Blade thickness: 2mm (0.07″ approx)Record 077 rabbet planes are used by woodworkers and cabinetmakers to trim shoulders and tenons. The 1⅛” wide blade is slightly wider than the body of the plane and set bevel up at a low angle. The blade has a slot which engages with the screw adjuster to give a finer and more accurate blade adjustment.Ray Iles RI007 to fit the following modern bull-nose rebate planes:Record 077Record 077ARecord 311Preston equivalents

SKU:

550613

UPC:

Blade Width:

1 1/8″
