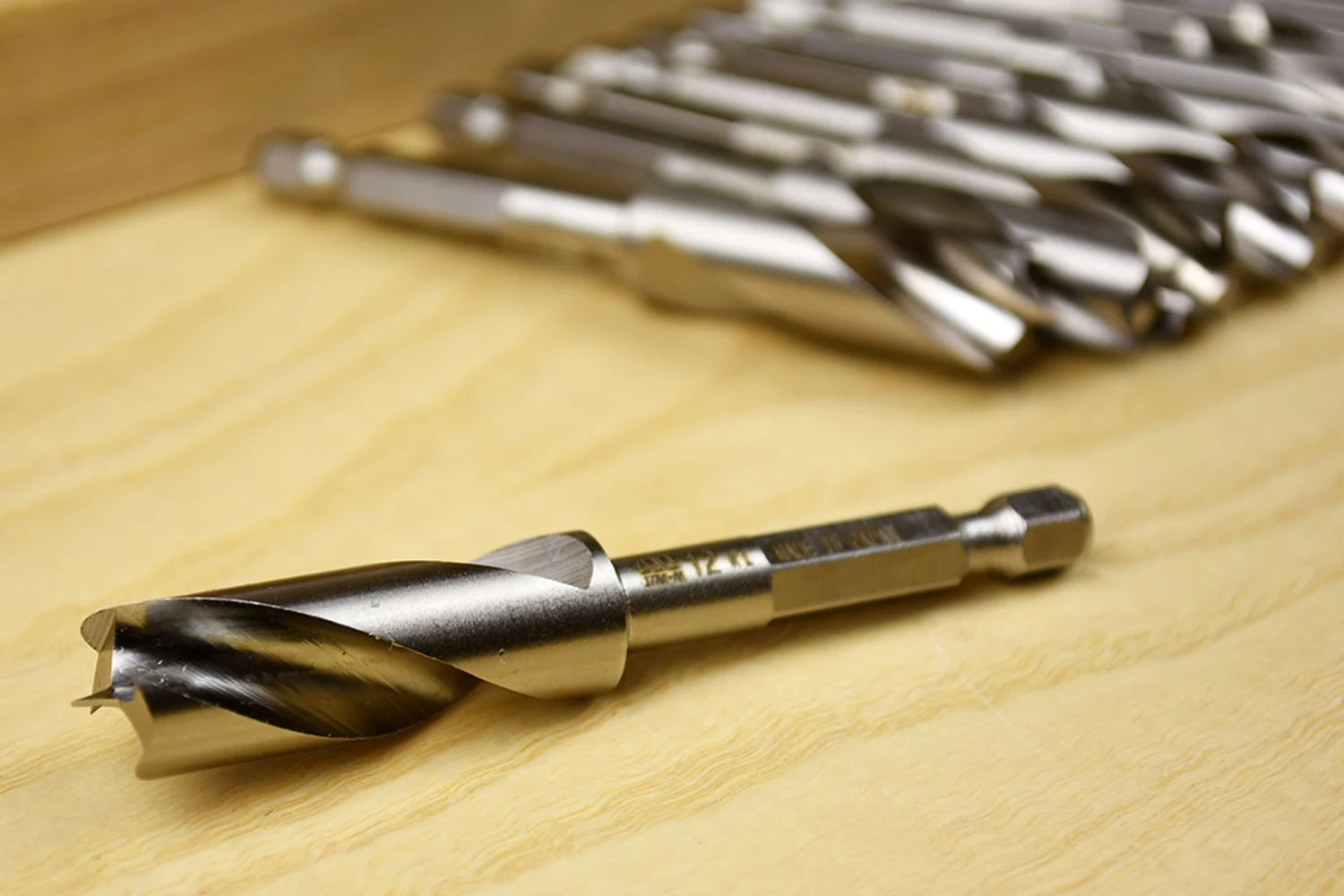

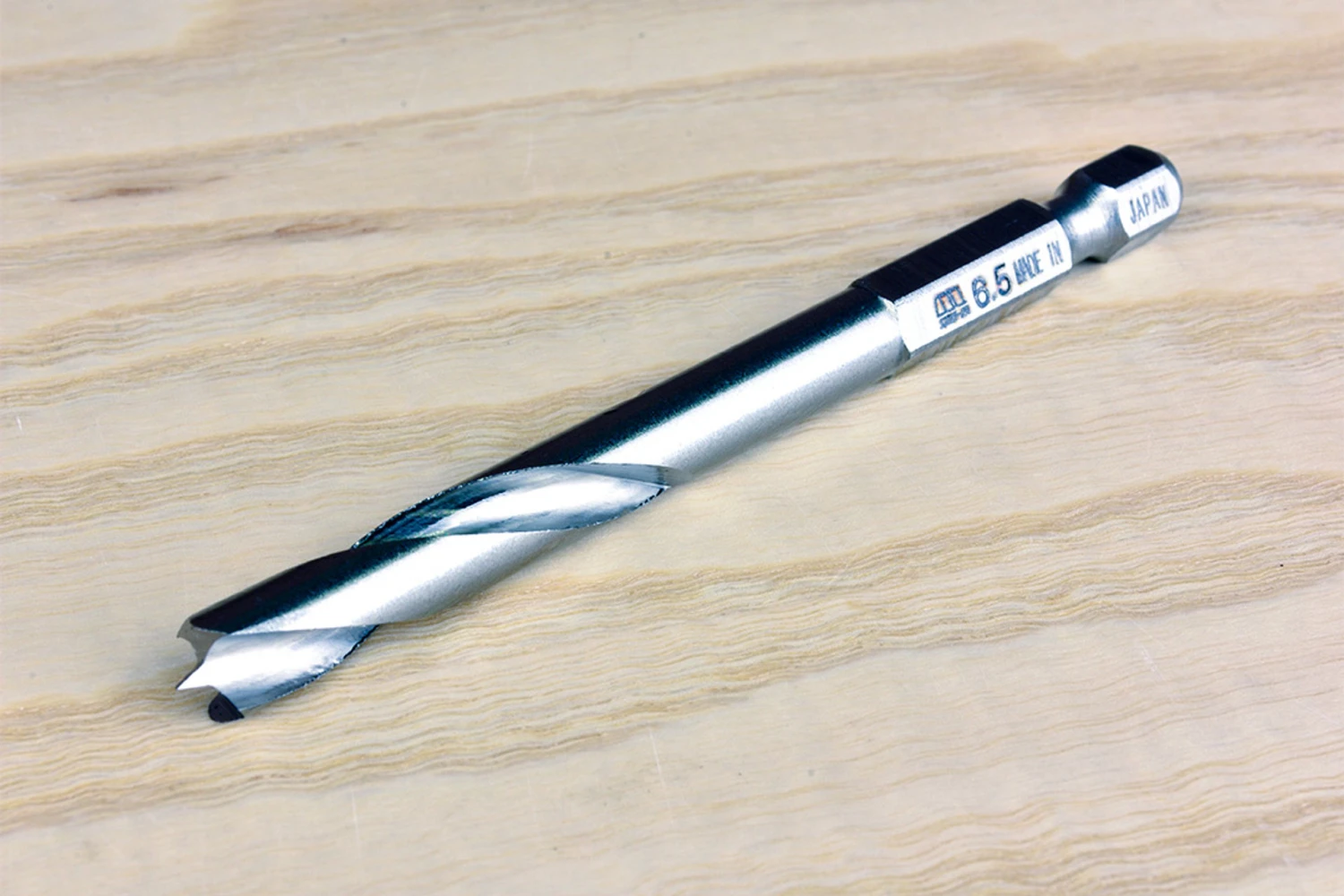

Star-M Japanese 601 Precision Drill Bit

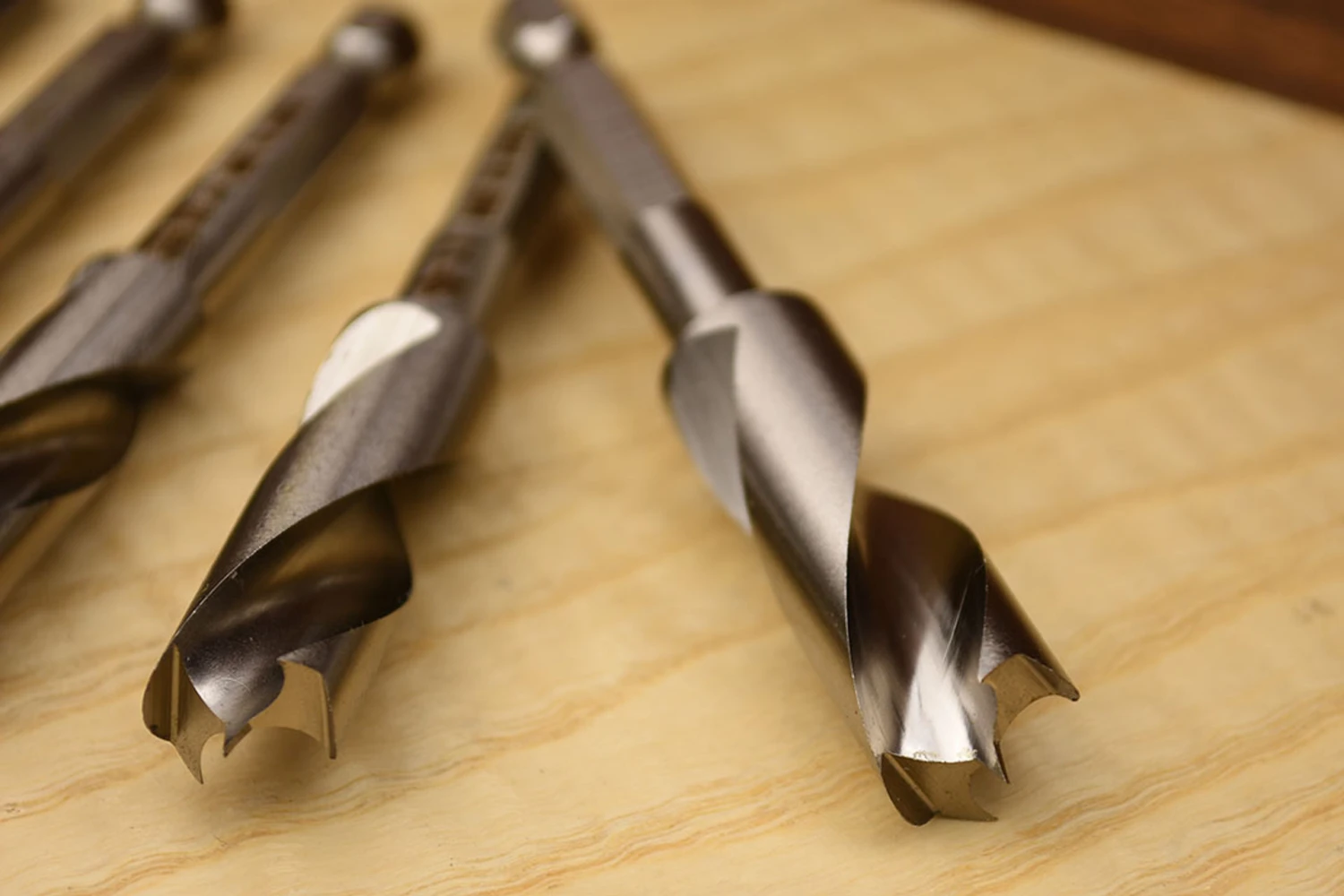

Designed specifically for soft materials like wood, leather and plastics that can otherwise be problematic to drill, these wonderfully innovative Japanese drill bits produce exceptionally clean, crisp holes.Hooked spurs clear any remaining waste from the perimeter of the cut, these are followed by semi-circular wings that incise a little deeper to part the waste from the surrounding material. A curved cutting edge then planes the waste out and sends it up the flutes.For plastics use a low speed setting, for fibrous materials use your highest speed setting, and in both cases introduce the bit to the material gradually.Drill Diameter (mm)Shank Diameter (mm)Overall Length (mm)Cutting Length (mm)36.3580353.56.35803546.3580354.56.35803556.3580355.56.35803566.3580356.56.35803576.3580357.56.35804086.3580408.56.35804096.3580409.56.358040106.35804010.56.358040116.35804011.56.358040126.358040136.35  156.3511666166.3511666186.3511666196.35  206.35  216.3512575226.3512575 Video courtesy of Star-M

SKU:

SM601

UPC:
