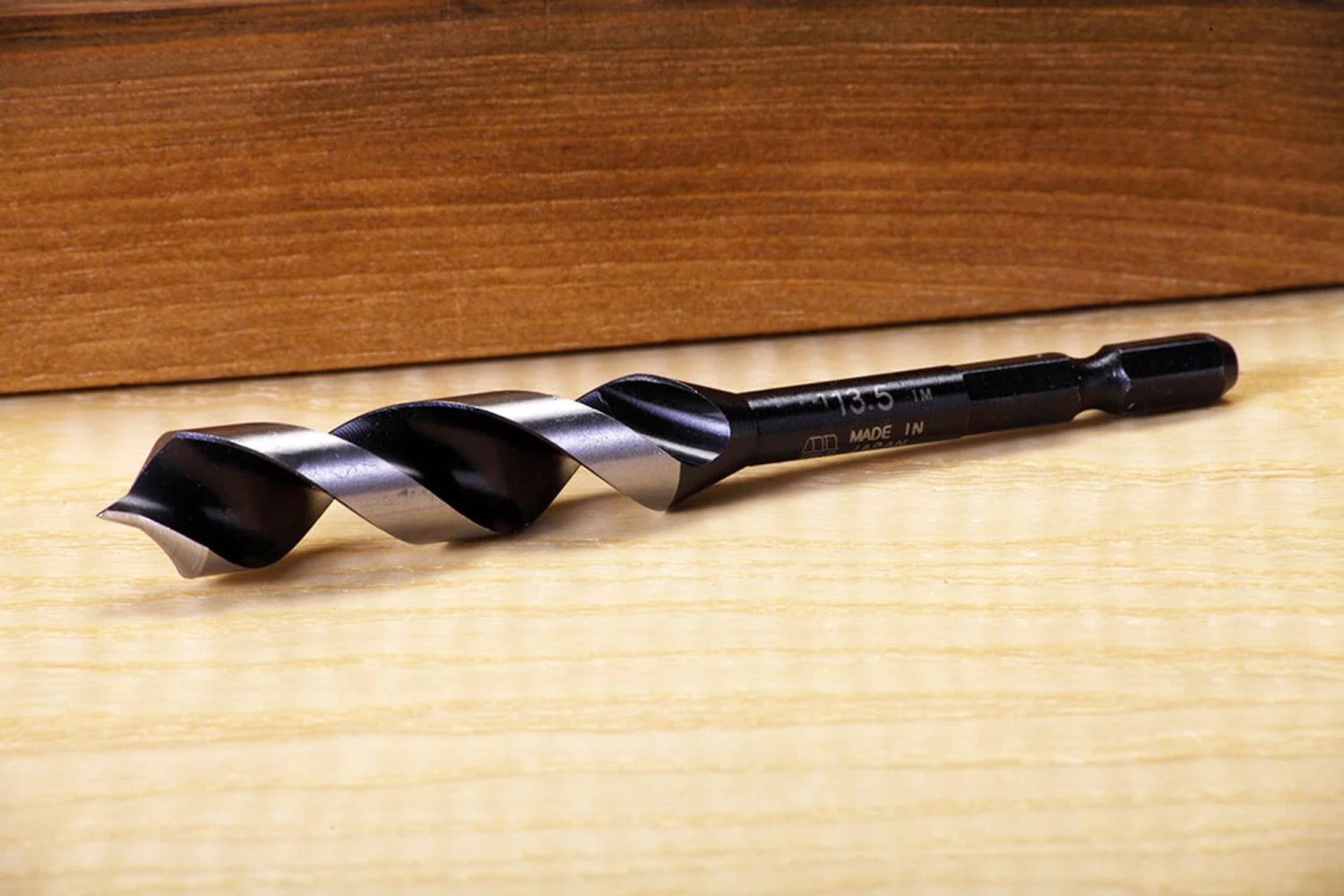

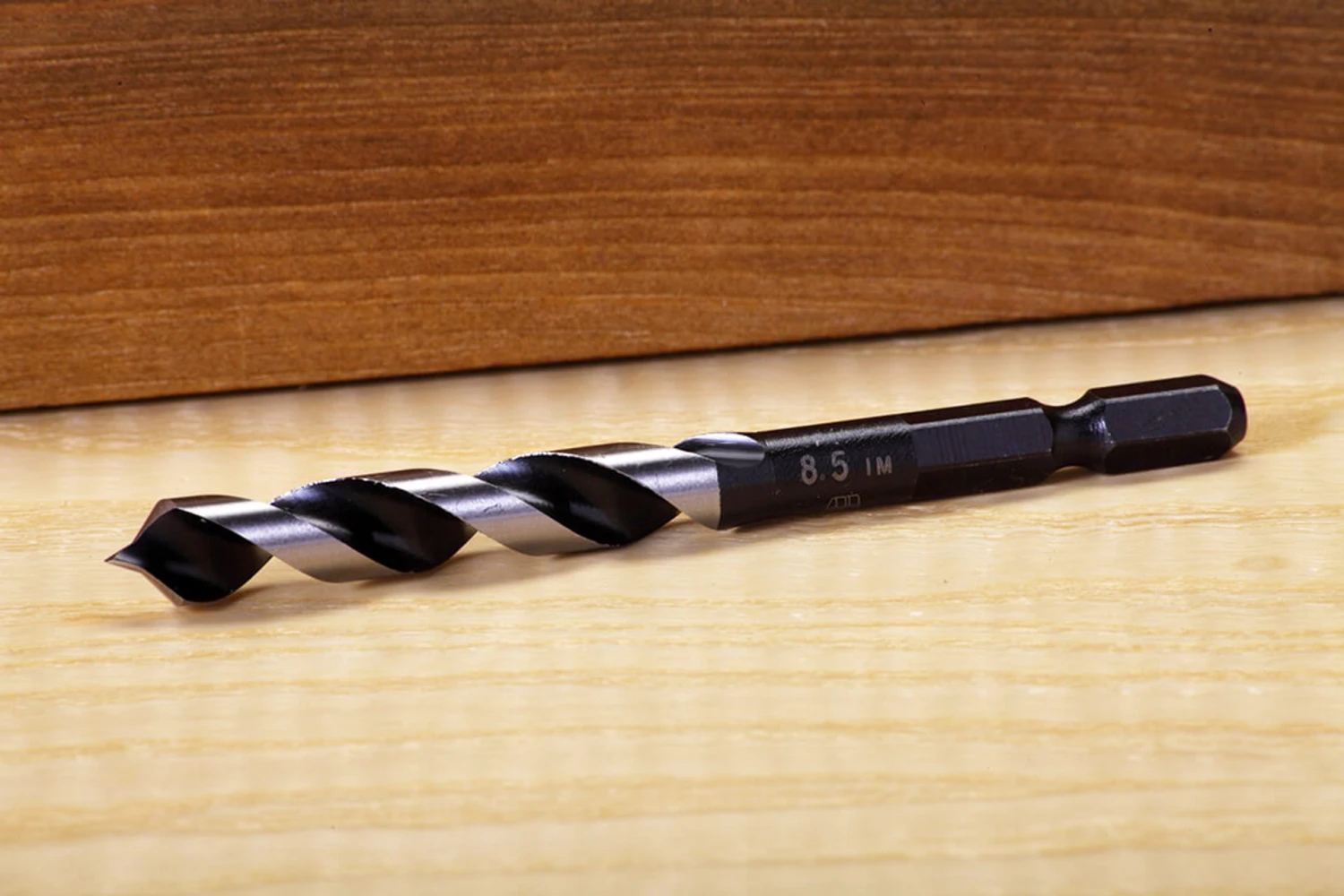

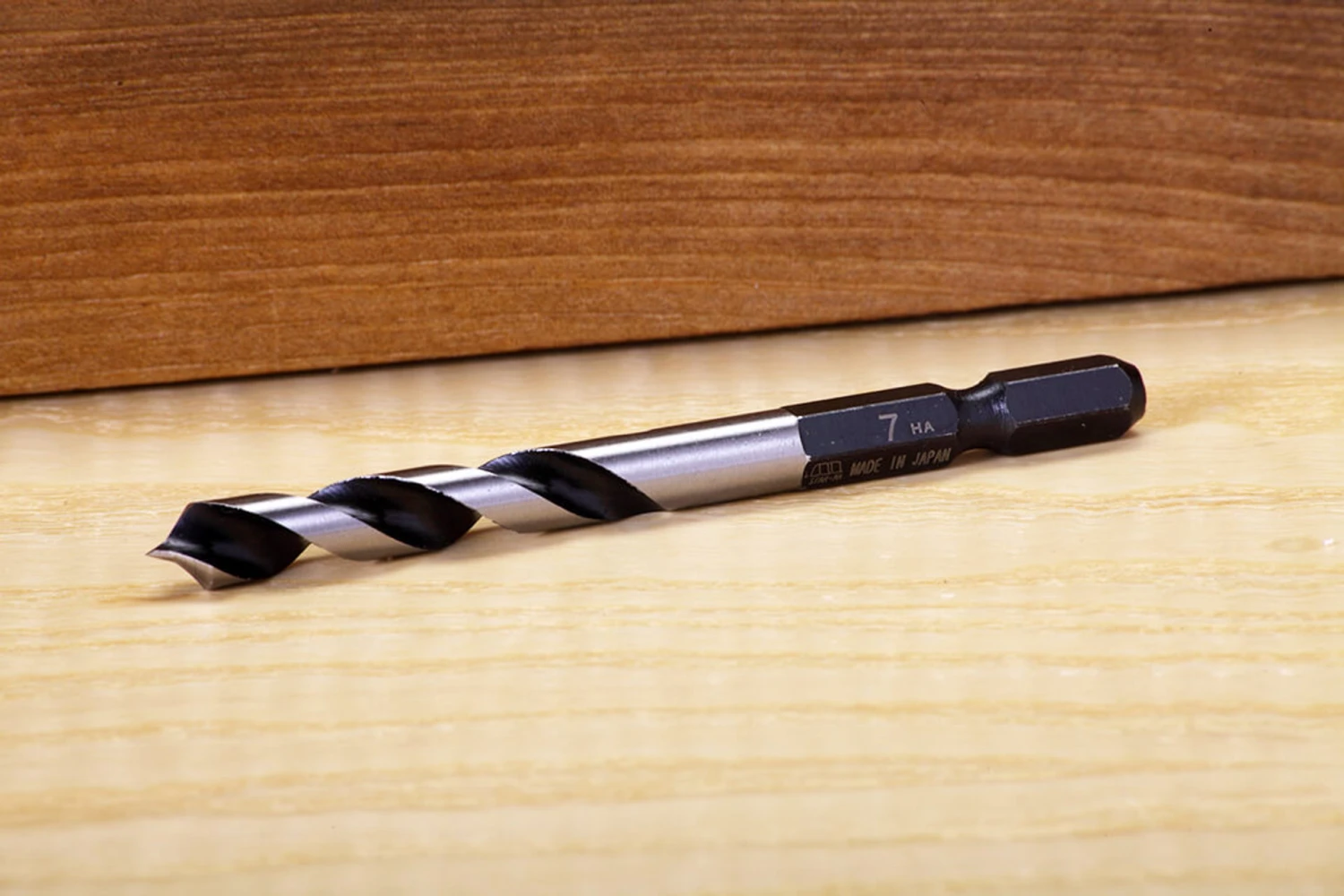

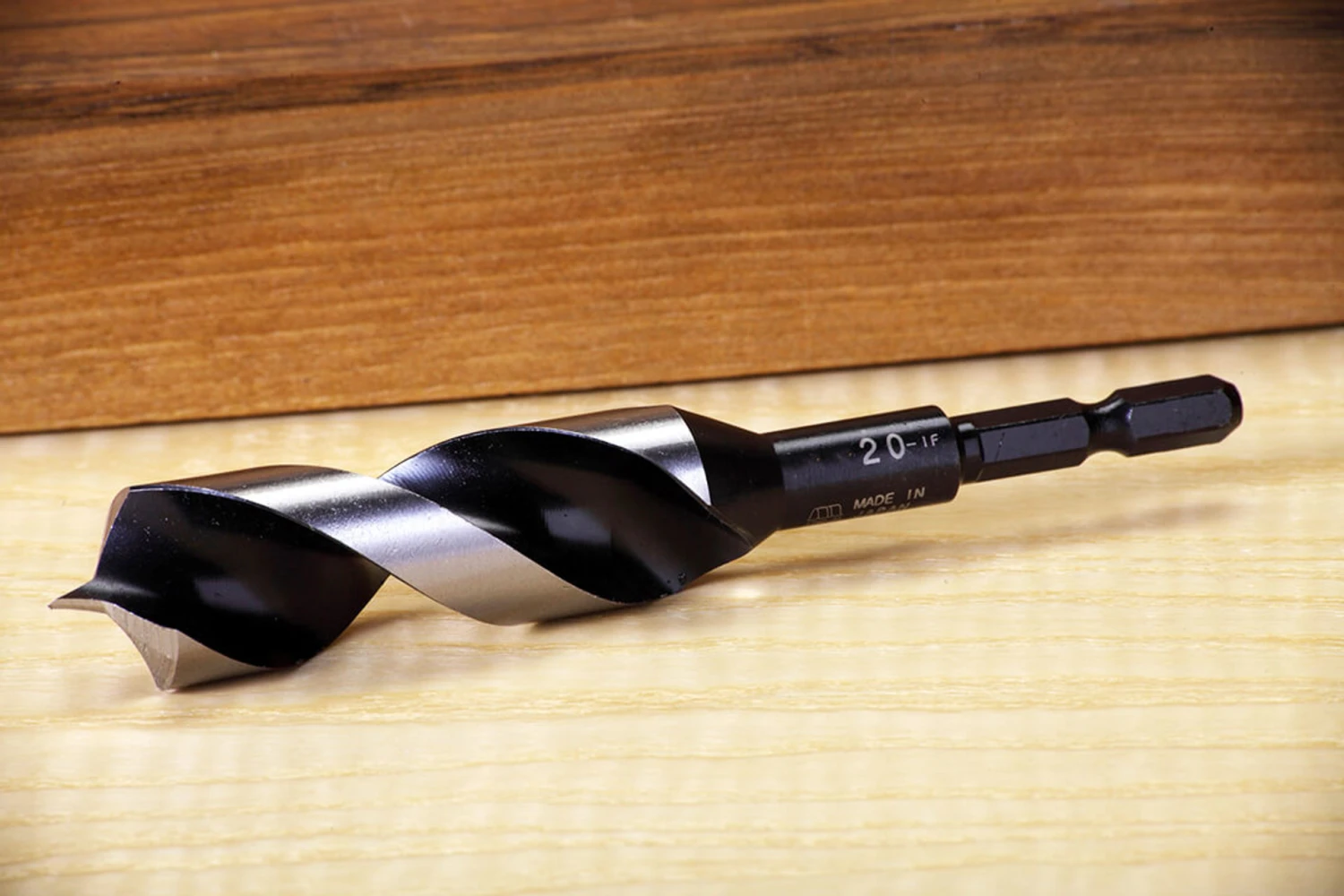

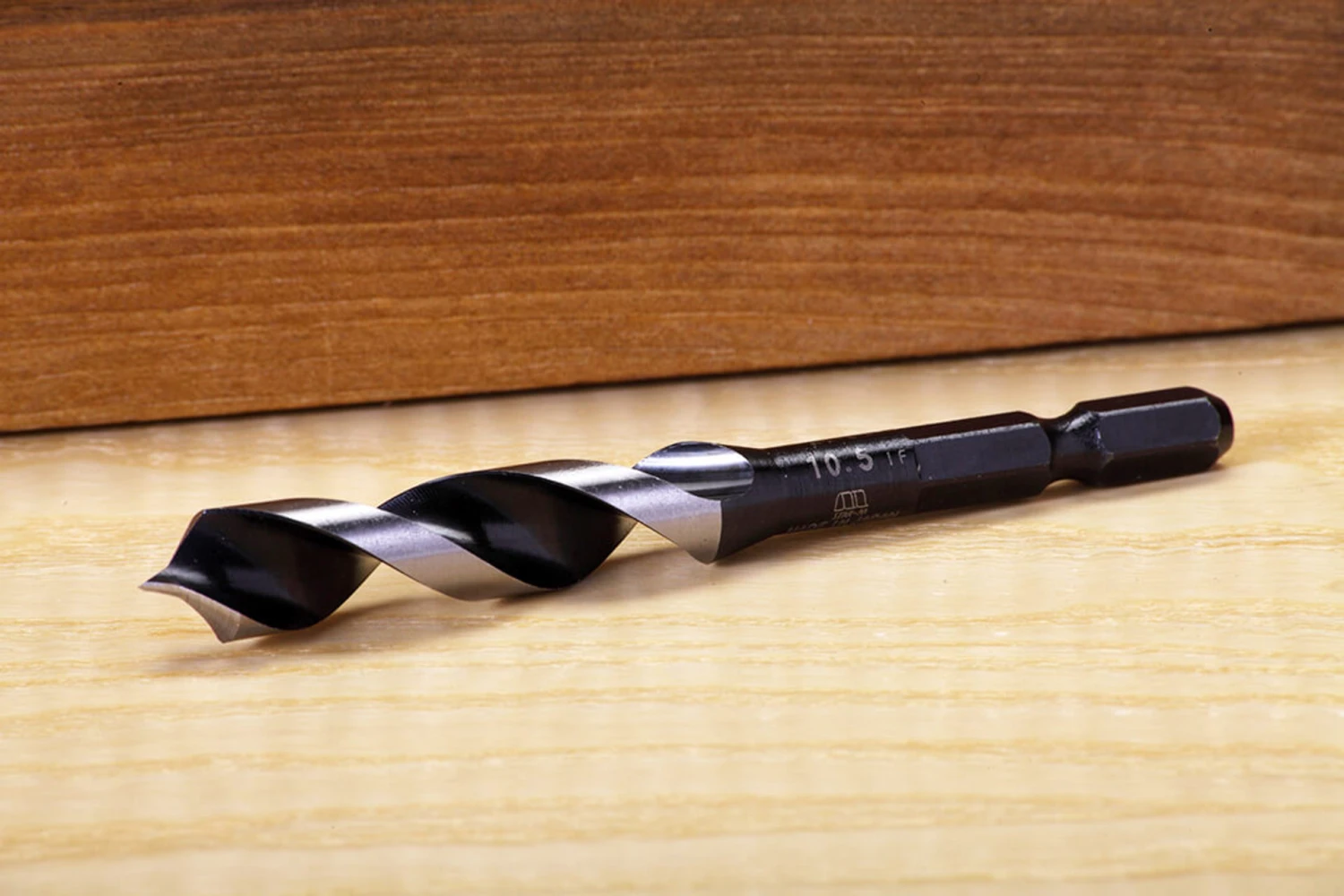

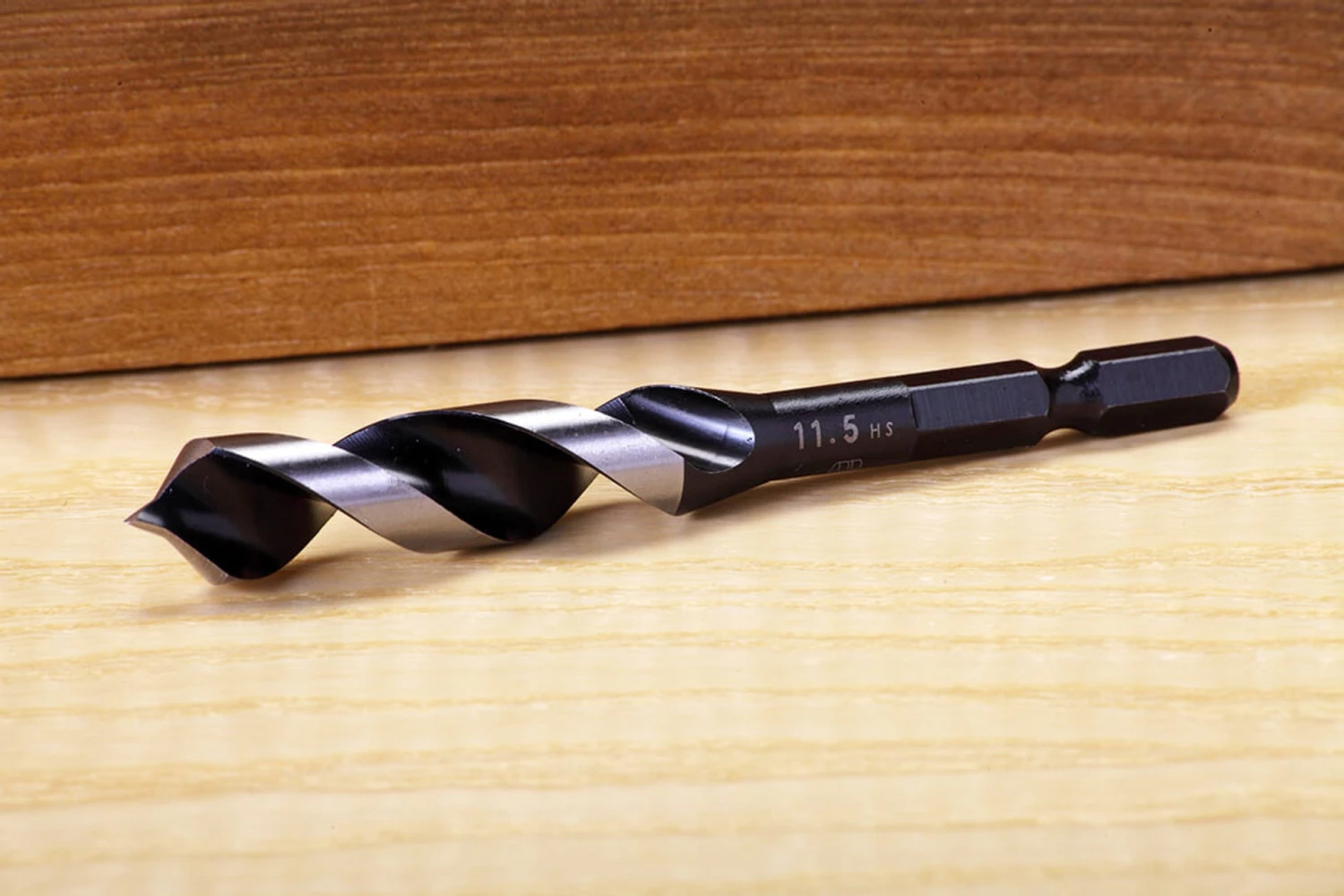

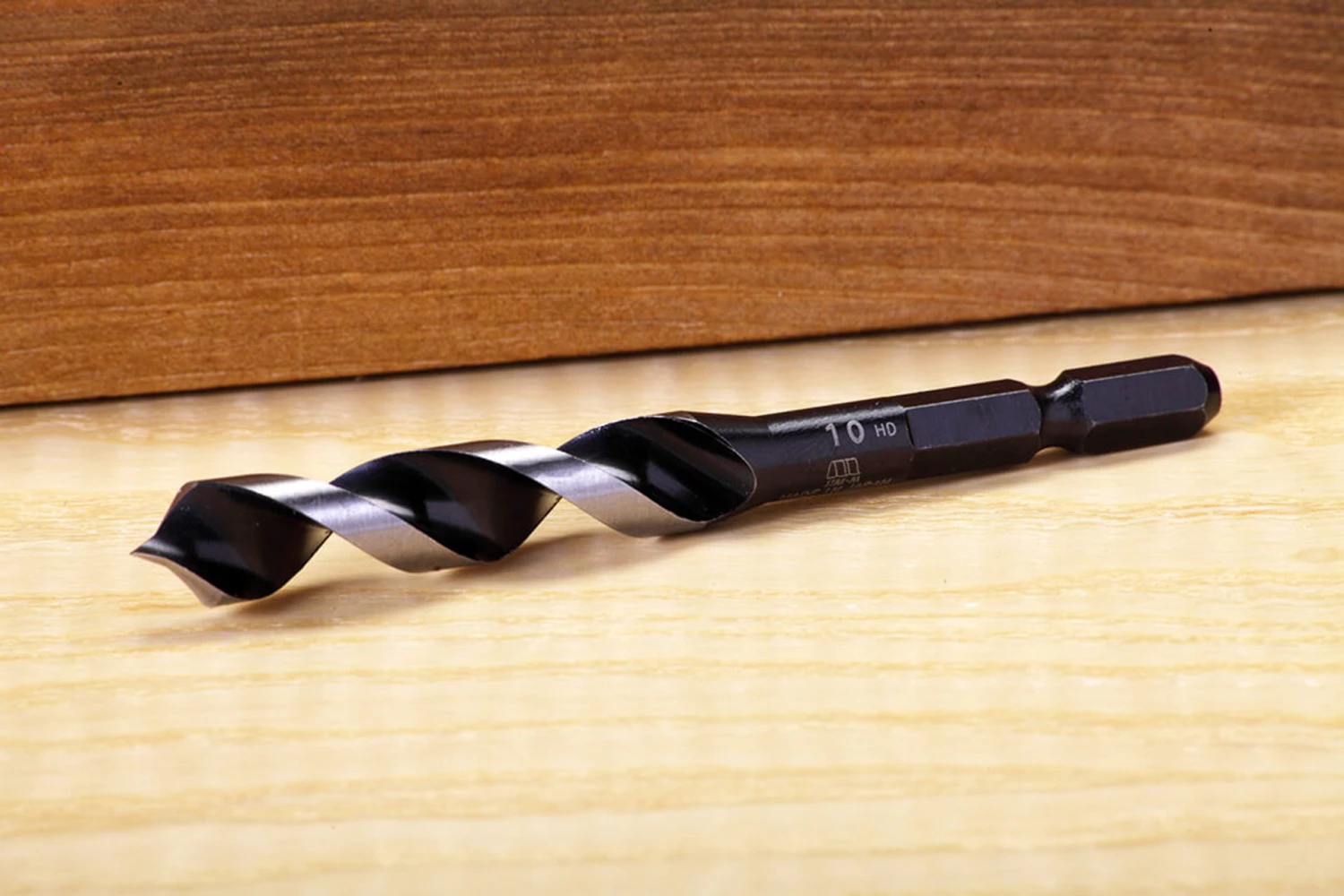

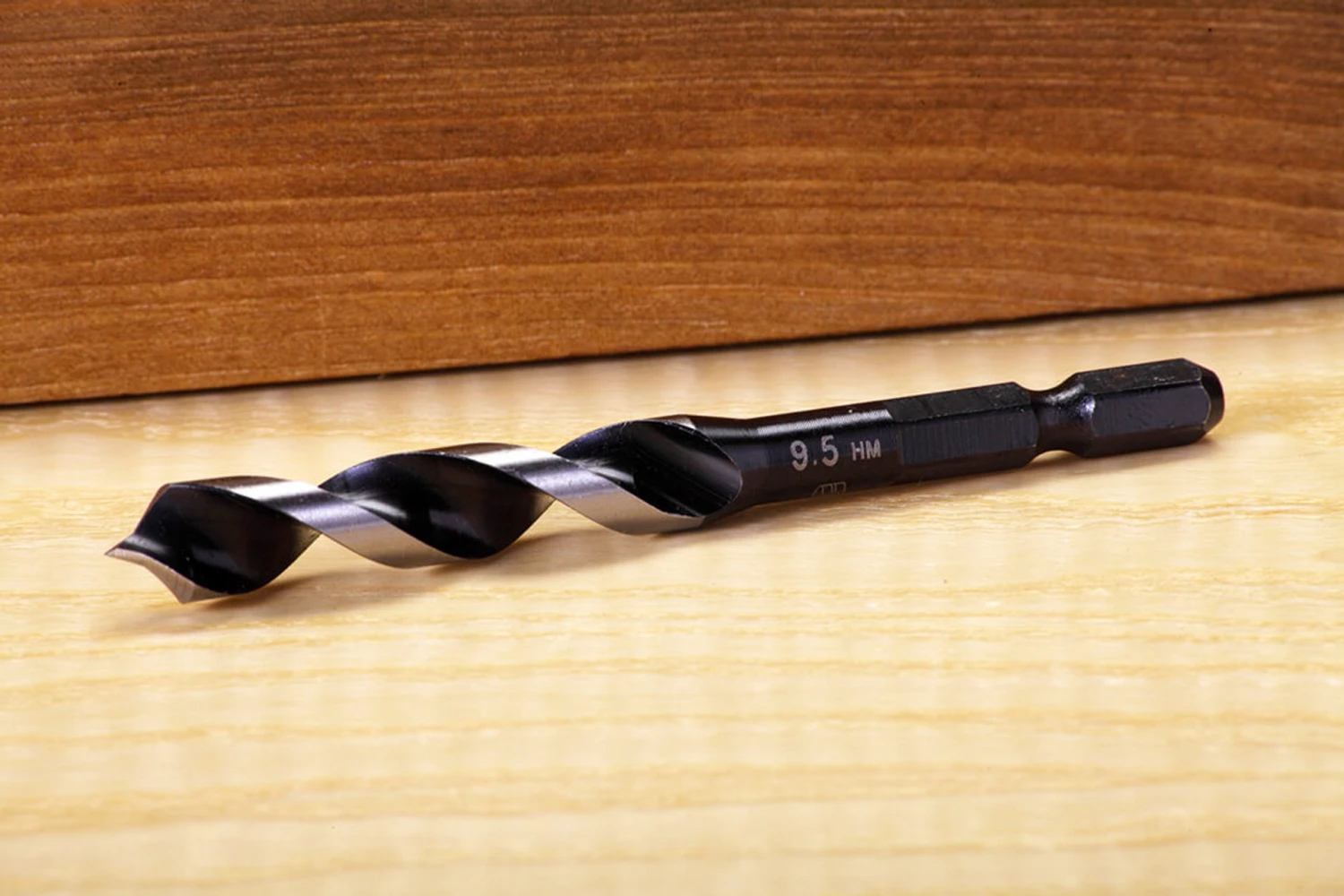

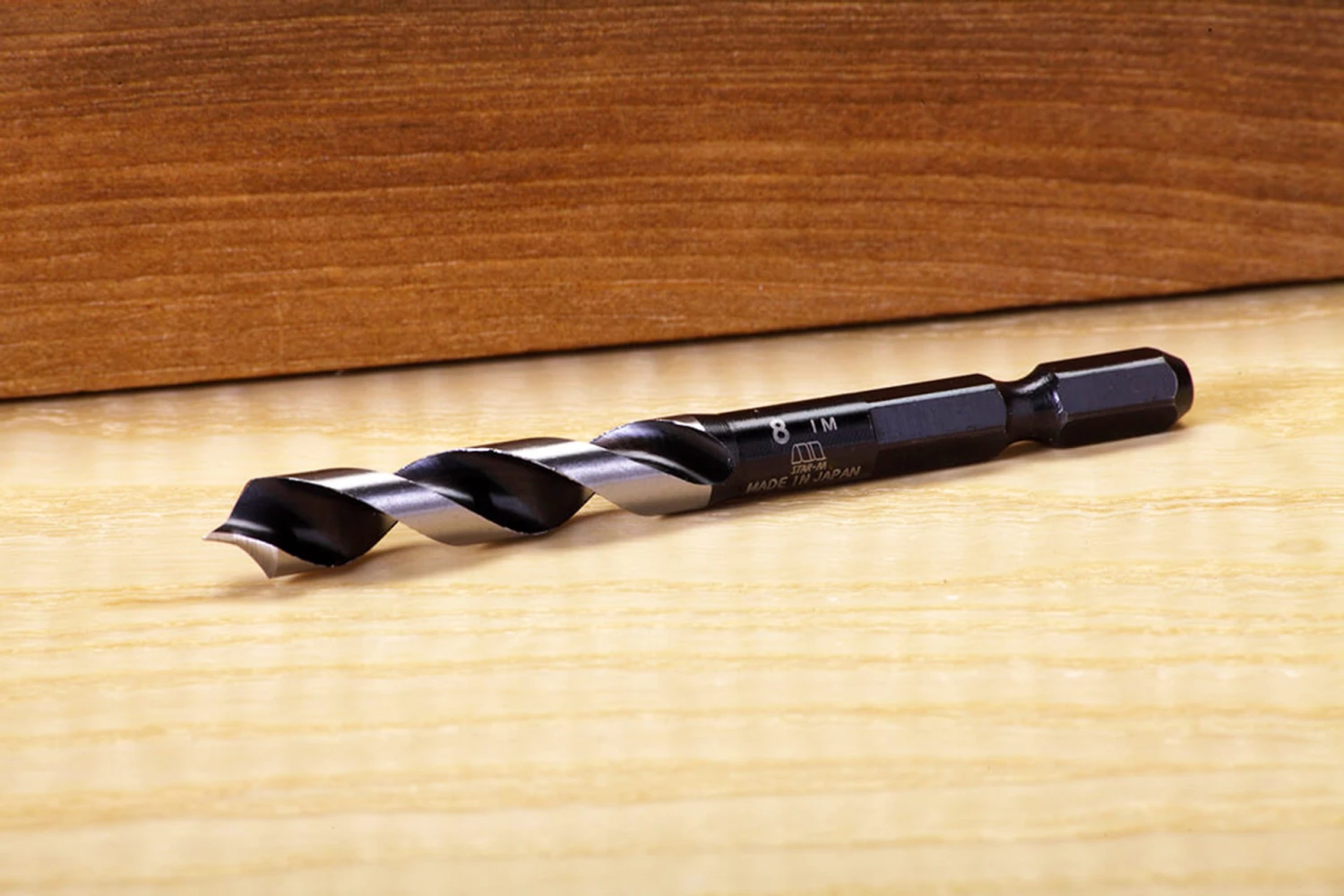

Star-M Japanese F-Type Bit

Designed specifically for use in cordless drills, F-Type non self-feeding auger bits reduce load on motors and bearings and extend battery life.Types are available in a practical range of full and half mm sizes including 19mm (ideal for drilling dog holes in benches).The innovative conical tip allows them to be used to ream out smaller diameter holes to a larger diameter and chase together holes drilled from opposite faces. The tip design also helps to reduce breakout on the exit side as the material is progressively sheared outwards from the centre.They are short enough to fit between joists when mounted in a drill, but can also be used with an extension for drilling deeper holes. F Types are also fantastic for use in a drill press.Drill Diameter (mm)Shank Diameter (mm)Overall Length (mm)Cutting Length (mm)66.35854076.35854086.3585458.56.35954596.3595459.56.359545106.35954510.56.359545116.359545126.359545136.3511550156.3511550166.3511550186.3511550196.3511550206.3512560216.3512560226.3512560246.35125602791256030912560

SKU:

SMFTYPE
