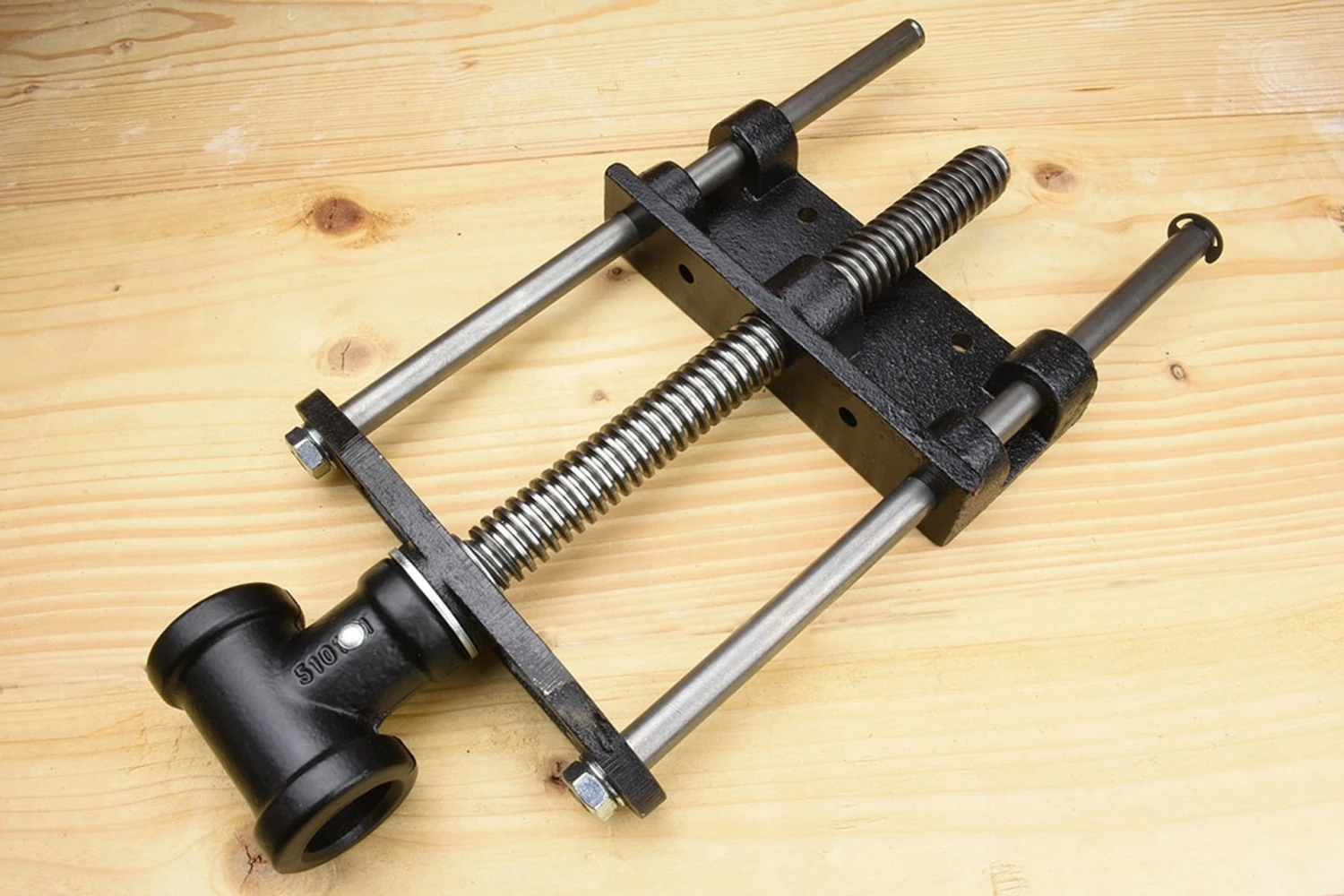

York Work Bench Spindle HV515

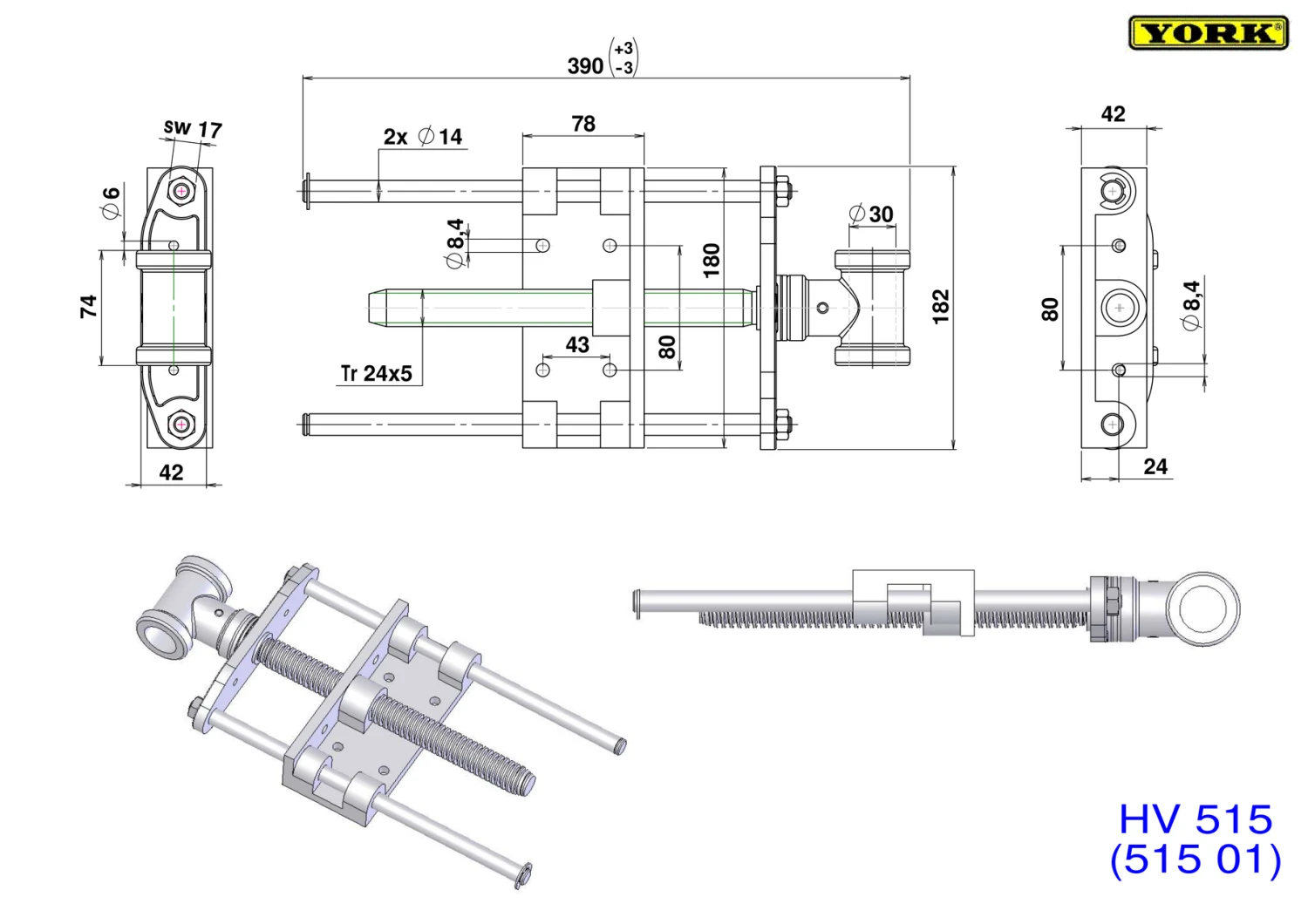

The York HV515 is a standard cast iron bodied bench vice spindle for front vices on European workbenches. Screwed beneath the top and fitted through the apron they provide an unobtrusive and reliable working mechanism.A circlip on the end of one of the spindles prevents the vice from being unintentionally withdrawn completely from the bench. When installing, check that the two nuts that hold the guide rods through the front plate are done up good and tight. Thread: 28mm x 5mm Length: 390mm Working length: 205mm Handle hole diameter: 30mm

SKU:

872400

UPC:
